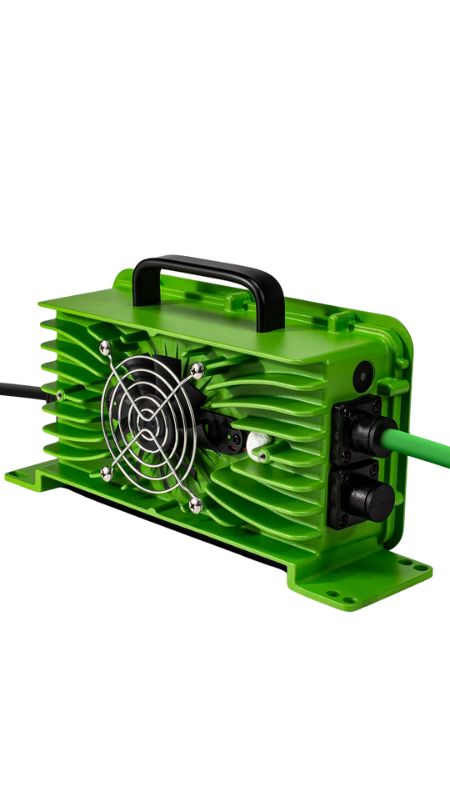

Premium Custom Golf Cart Chargers | Built for Your Unique Power Needs
Get a Charger Designed Specifically for Your Cart’s Voltage, Battery Type & Performance Goals
Common Output Specifications
Our chargers are compatible with various voltage systems to suit different golf cart models:

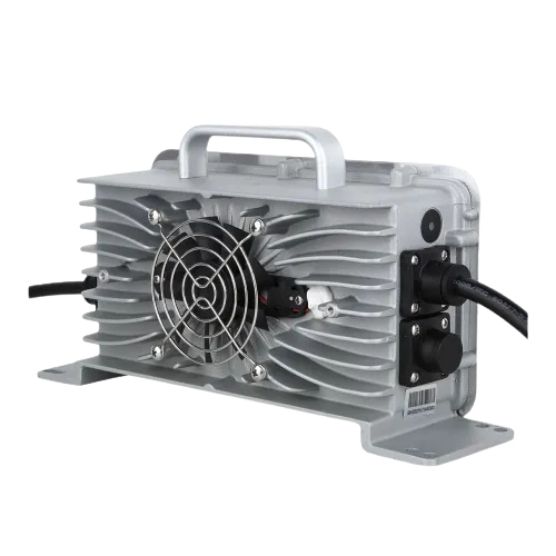

36V Chargers
Ideal for older or classic golf carts, providing reliable performance to keep your vehicle running smoothly.

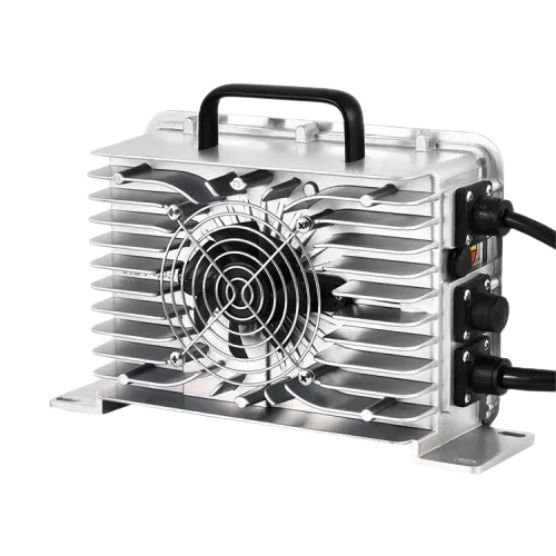

48V Chargers
Designed for modern, high-performance carts, offering efficient charging to minimize downtime.

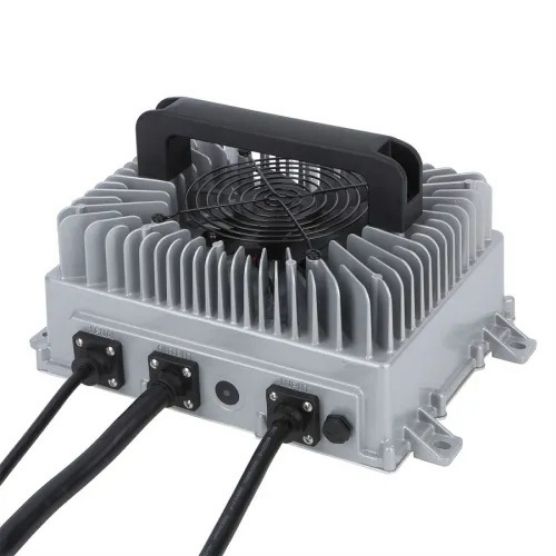

72V Chargers
For specialized or heavy-duty golf carts requiring higher voltage support.

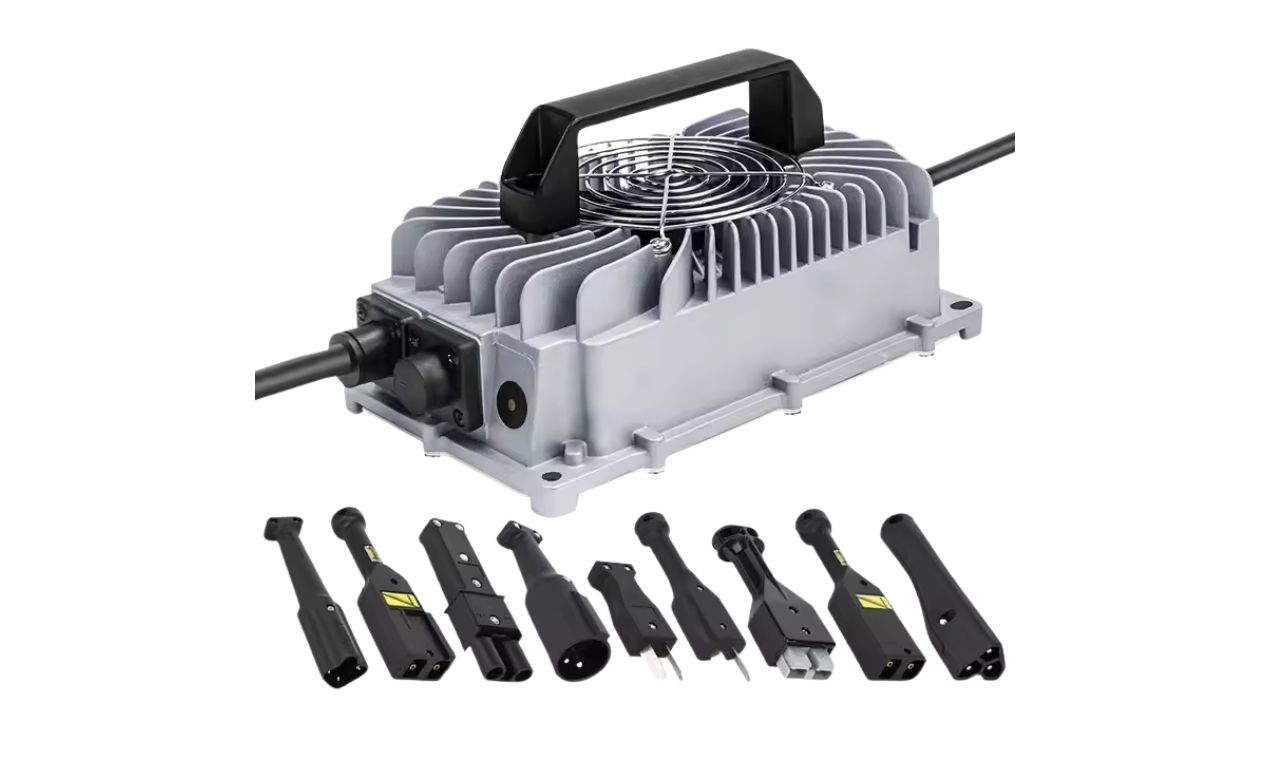

Optional Functions
Customize your charger with a range of optional features to enhance functionality:
Smart Charging Technology: Incorporates multi-stage charging to optimize battery health and extend lifespan.
LED Indicators: Provides real-time charging status, including charging, fully charged, and error alerts.
Overcharge Protection: Automatically stops charging when the battery is fully charged to prevent damage
Temperature Monitoring: Ensures safe operation by monitoring and adjusting charging based on temperature conditions.
Waterproof Design: Suitable for outdoor use, protecting the charger from moisture and dust.
Case Size Options
We offer chargers in various sizes to fit your specific space requirements:
Compact
Ideal for limited spaces, easy to store and transport.
Standard
Balances size and power, suitable for most applications.
Heavy-Duty
Designed for industrial use, providing robust performance in demanding environments.
AC & DC Compatibility
Our chargers are designed to work seamlessly with various power sources:

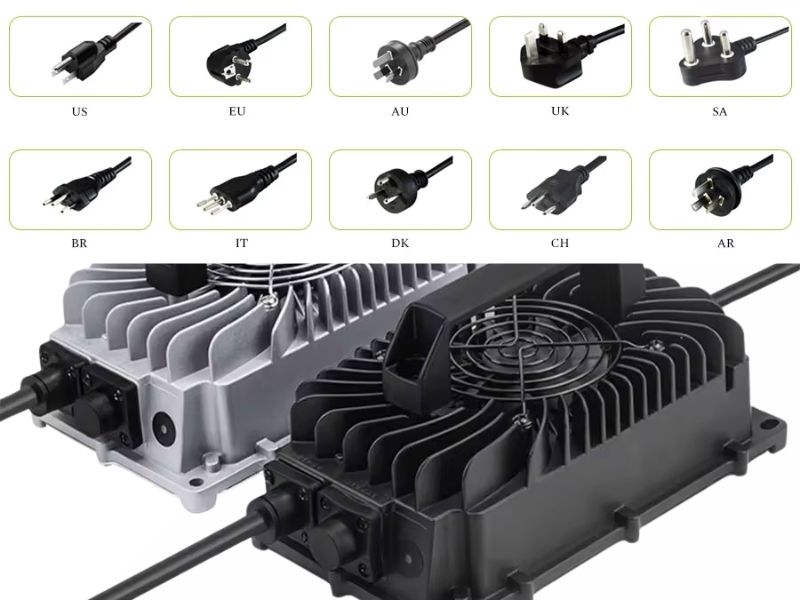

AC Input
Compatible with standard household outlets, supporting a wide voltage range (e.g., 100-240V).

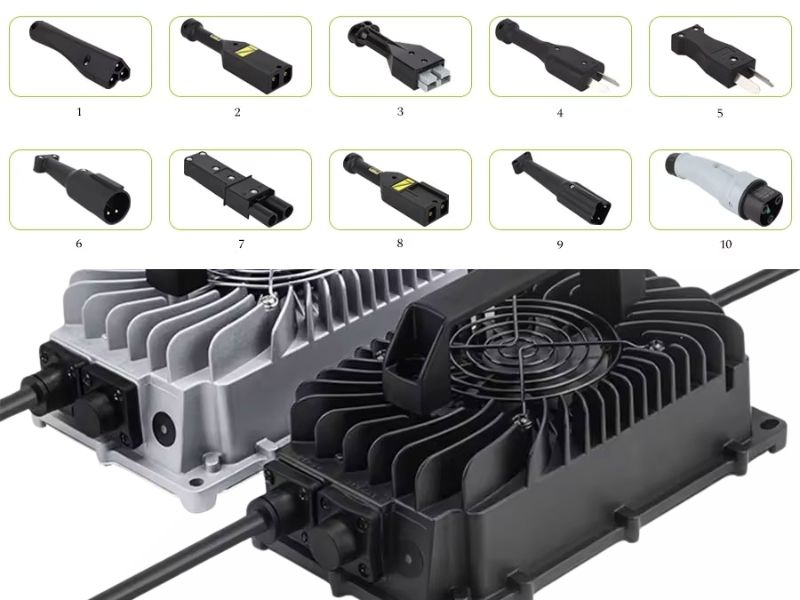

DC Output
Provides stable and efficient charging to your golf cart’s battery system.
Case Study: Tailored Charging Solution for Golf Cart Charger

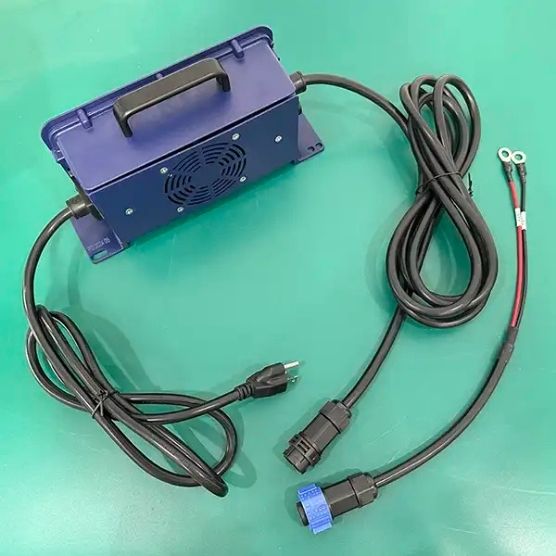

48 Volts 18 Amps Golf Cart LiFePO4 Battery Charger
Battery: 16S LiFePO4
Charging Current/Voltage: 58.4V 18A
Model: 48 Volts 18 Amps Golf Cart LiFePO4 Battery Charger
Type: Black handle blue shell
AC Input: US standard plug 1.5M(3*2.08mm²)
DC Output: Output cable 2.8M(2*2.5mm²) to M25 3-pin female plug, M25 3-pin male plug to M8 ring terminal 40cm(strip wire 20cm)

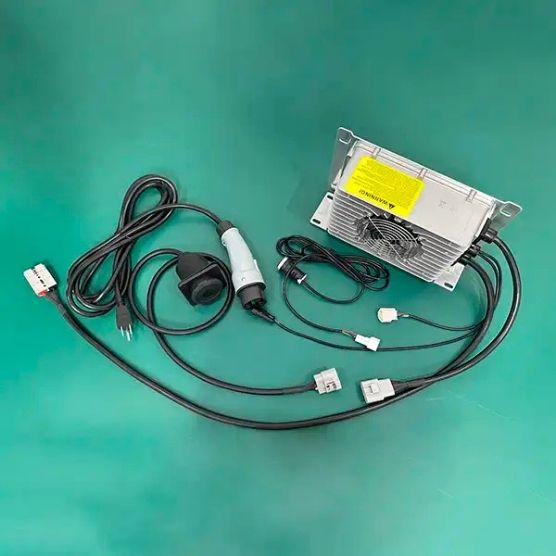

Golf Cart 72 Volts 25 Amps 23S LiFePO4 Battery Charger
Battery: 23S LiFePO4
Current/Voltage: 84V 25A
Model: Golf Cart 72 Volts 25 Amps 23S LiFePO4 Battery Charger With External Indicator
AC Input: US standard plug to Yeeda, Yeeda AC socket to DJ7031-4.8-21 connector 1.0M(3*2.08mm²), DJ7031-4.8-11 to charger 0.5M(3*2.5mm²)
DC Output: Output cable 95cm(2*3.5mm²) to 50A grey Anderson

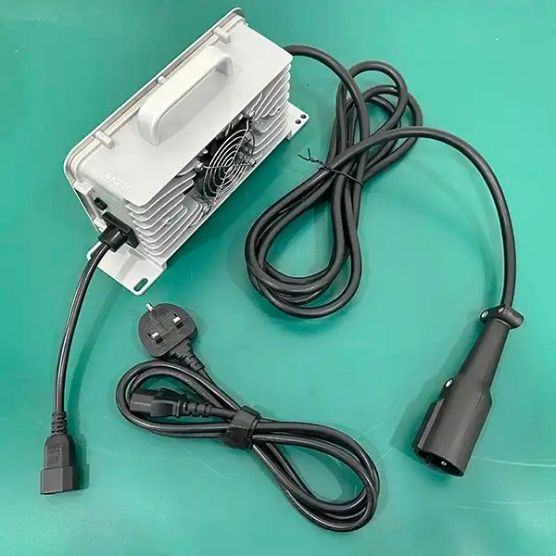

UK Plug Golf Cart Lead Acid Battery Charger 48 Volts 22A
Battery: 48V Lead Acid
Charging Current/Voltage: 48V 22A
Model: UK Plug Golf Cart Lead Acid Battery Charger 48 Volts 22A
Type: With handle silver shell
AC Input: 10A UK standard plug
1.5M(3*1.5mm²) to C13, 10A C14 to charger.
DC Output: Output cable 3.0M(2*3.5mm²) to golf cart 3 pin round connector

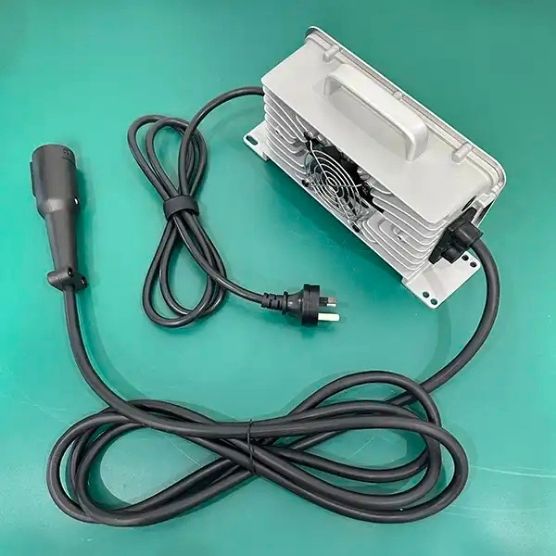

Golf Cart Charger 48 Volts 22 Amps For 16S LFP Battery
Battery: 16S LiFePO4
Current/Voltage: 58.4V 22A
Model: Golf Cart Charger 48 Volts 22 Amps For 16S LFP Battery
Type: With handle silver shell
AC Input: AU standard plug 1.5M(3*1.5mm²)
DC Output: Output cable 2.8M(2*3.5mm²) to golf cart connector, negative grounded

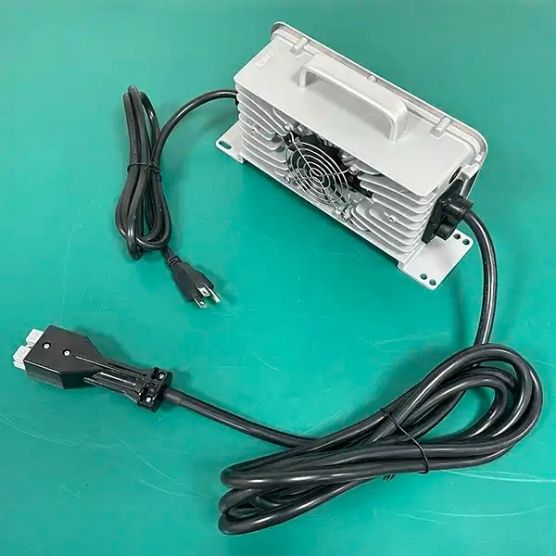

Golf Cart 43.8V 22A 12S LiFePO4 Battery Charger
Battery: 12S LiFePO4
Current/Voltage: 43.8V 22A
Model: Golf Cart 43.8V 22A 12S LiFePO4 Battery Charger
Type: With handle silver shell
AC Input: US standard plug 1.5M(3*1.31mm²)
DC Output: Output cable 2.8M(2*3.5mm²) to DCS plug for golf cart

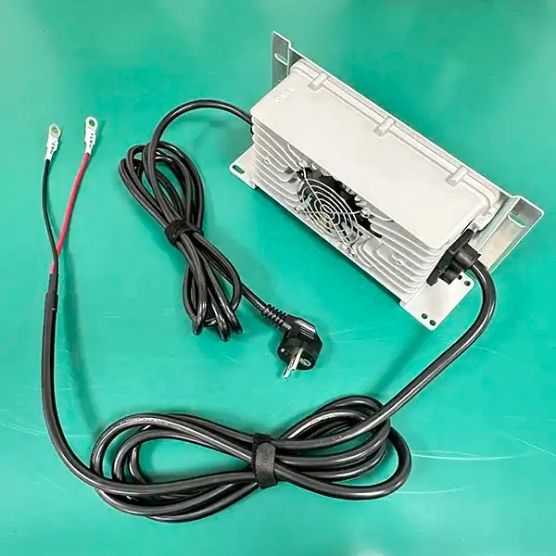

Golf Cart Battery Charger 48V 25A 16S LiFePO4
Current/Voltage: 58.4V 25A
Battery: 16S LiFePO4
Model: Golf Cart Battery Charger 58.4V 25A 16S LiFePO4
Type: On-Board silver shell
AC Input: EU standard plug 2.5M(3*1.5mm²)
DC Output: Output cable 2.5M(2*3.5mm²) strip cable 20cm to M8 ring terminal

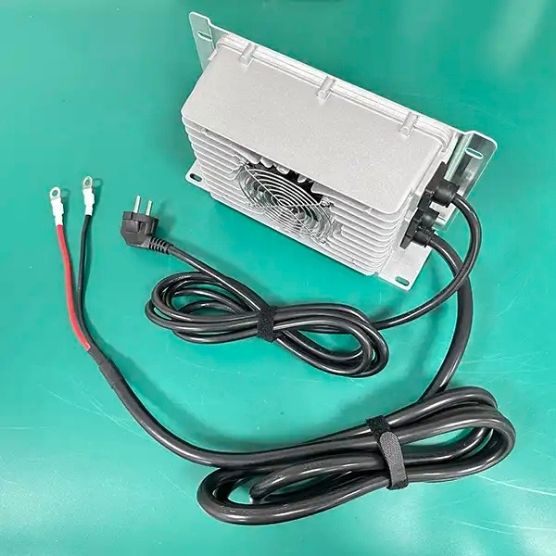

Golf Cart 48V 35A 16S LiFePO4 Battery Charger
Battery: 16S LiFePO4
Current/Voltage: 58.4V 35A
Model: Golf Cart 58.4V 35A 16S LiFePO4 Battery Charger
Type: On-Board silver shell
AC Input: EU standard plug 2.5M(3*2.08mm²)
DC Output: Output cable 2.5M(2*5.26mm²) strip cable 20cm to M8 ring terminal

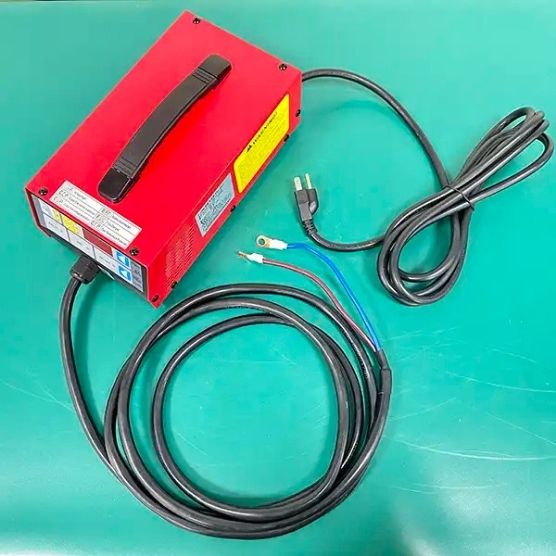

Golf Cart 58.4V 40A 16S 100Ah LiFePO4 Battery Charger
Battery: 16S 100Ah LiFePO4
Current/Voltage: 58.4V 40A
Model:Golf Cart 58.4V 40A 16S 100Ah LiFePO4 Battery Charger
Type: Black handle red iron shell
AC Input: 200-240Vac, US standard plug 2.8M(3*2.08mm²)
DC Output: Output 2 core cable 2.8M(2*6mm²) to M8 ring terminal.

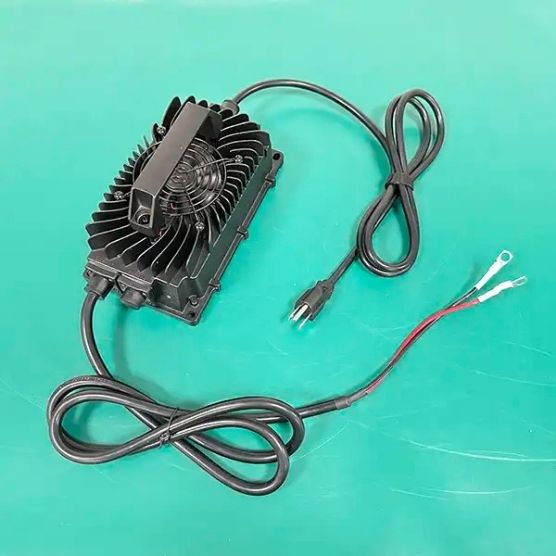

US Plug Golf Cart 56.4V 15A 16S LiFePO4 Battery Charger
Battery: 16S LiFePO4
Current/Voltage: 56.4V 15A
Model: US Plug Golf Cart 56.4V 15A 16S LiFePO4 Battery Charger
Type: With handle black shell
AC Input: US standard plug 1.5M(3*1.31mm²)
DC Output: Output cable 1.5M(2*2.5mm²) to M8 square terminal

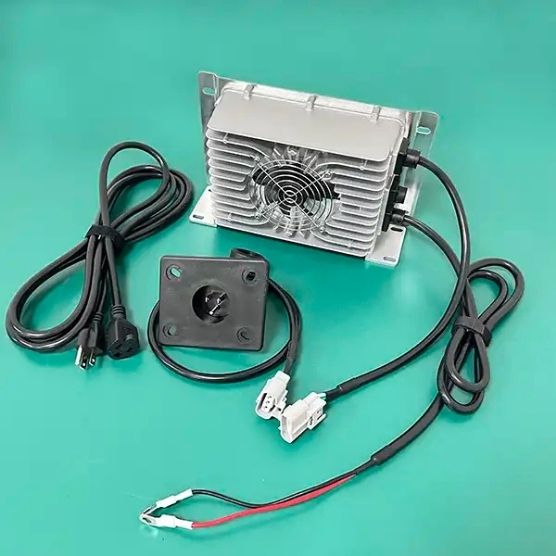

On-Board Golf Cart Charger 108V 10A 30S LiFePO4 Battery
Battery: 30S LiFePO4
Current/Voltage: 108V 10A
Model: On-Board Golf Cart Charger 108V 10A 30S LiFePO4 Battery
Type: On-Board silver shell
AC Input: Input cable 40cm(3*2.08mm²) to automotive connector DJ7031-4.8-11, DJ7031-4.8-21 adapter to EZGO diamond socket board 80cm(3*2.5mm²), EZGO custom plug to US standard AC plug 3M(3*2.08mm²).
DC Output: Output cable 1.5M(2*2.5mm²) to M8 ring terminal

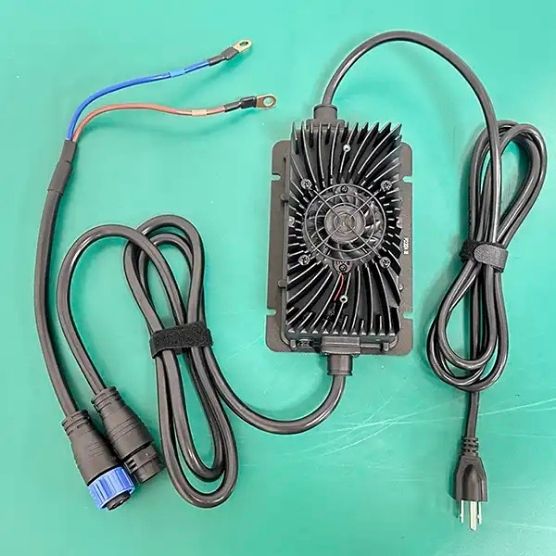

On-board Golf Cart Charger For 43.8V 18A 12S LiFePO4 Battery
Battery: 12S LiFePO4
Current/Voltage: 43.8V 18A
Model: On-board Golf Cart Charger For 43.8V 18A 12S LiFePO4 Battery
Type: On-board black shell
AC Input: US standard plug 1.5M(3*1.31mm²)
DC Output: Output cable 1.5M(2*3.5mm²) to M25 2 core female plug connect to M25 male plug to M8 thickened ring terminal.(terminal thickness 1.4mm).
Golf Cart 43.8V 30A 12S LiFePO4 Battery Charger
Battery: 12S LiFePO4
Current/Voltage: 43.8V 30A
Model: Golf Cart 43.8V 30A 12S LiFePO4 Battery Charger
Type: With handle silver shell
AC Input: US standard plug 1.5M(3*2.08mm²)
DC Output: Output cable 2.8M(2*5.26mm²) to M8 ring terminal(cable stripping 20cm)

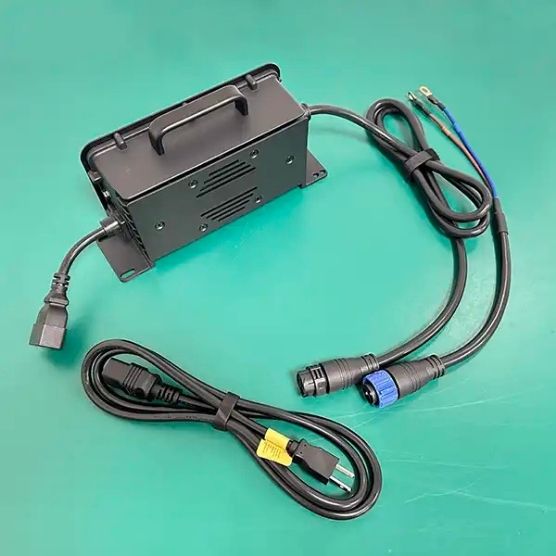

36V 25A Golf Cart 12S LiFePO4 Battery Charger
Battery: 12S LiFePO4
Current/Voltage: 43.8V 25A
Model: 36V 25A Golf Cart 12S LiFePO4 Battery Charger With Cover Plate
Type: With handle black shell and active fan cover plate
AC Input: 10A US standard plug to C14 1.5M(3*1.31mm²), 20cm 10A C14 to charger
DC Output: 1.5M(2*3.5mm²) output cable to M25 2 core female plug, male plug connect to M8 thickened ring terminals. (Terminal thickness 1.4mm).
Golf Cart Charger 58.4V 22A For 16 Series LiFePO4 Battery
Battery: 16S LiFePO4
Current/Voltage: 58.4 Volts 22 Amps
Model: Golf Cart Charger 58.4 Volts 22 Amps For 16 Series LiFePO4 Battery With TXT Connector
Type: Black handle silver shell
AC Input: 16A US standard plug to C19 2.8M(3*2.08mm²), 20cm 16A C20 to charger
DC Output: golf cart txt dc connector 2.8M
Golf Cart Charger 58.4 Volts 22 Amps For 16 Series LiFePO4 Battery
Battery: 12S LiFePO4
Current/Voltage: 43.8V 30A
Model: Golf Cart 43.8V 30A 12S LiFePO4 Battery Charger
Type: With handle silver shell
AC Input: US standard plug 1.5M(3*2.08mm²)
DC Output: Output cable 2.8M(2*5.26mm²) to M8 ring terminal(cable stripping 20cm)
FAQ
Will this work with my 20-year-old Club Car DS model?
We’ve successfully retrofitted chargers for carts dating back to 1998 – send us your existing charger label photo for verification.
How fast can I get a custom charger?
Most orders ship in 11-14 business days after final spec confirmation.
However, it’s essential to ensure that the charger’s amperage is compatible with your battery’s specifications to avoid overcharging or overheating.
Is the charger compatible with my golf cart's brand and model ?
Compatibility depends on both the voltage and the connector type. Different golf cart brands (like Club Car, EZGO, and Yamaha) often use specific plug types.
Ensure that the charger’s connector matches your cart’s charging port. Using an incompatible charger can lead to charging issues or even damage to the cart’s electrical system.
Should I choose a smart charger for my golf cart?
Smart chargers offer advanced features like automatic shut-off, multi-stage charging, and maintenance modes. These features help prolong battery life, prevent overcharging, and ensure optimal battery performance.
If you use your golf cart frequently or want to maintain your batteries in peak condition, investing in a smart charger is a wise choice.
What safety features should I look for in a golf cart charger?
Safety is paramount when selecting a charger. Look for chargers equipped with features such as overcharge protection, short-circuit protection, and reverse polarity protection.
These features help prevent accidents, protect your batteries from damage, and ensure safe operation during the charging process.
How long does it take to fully charge a 36-volt golf cart??
Charging time varies based on the charger’s amperage and the battery’s state of charge. Generally:
15-Amp Charger: Approximately 6–8 hours for a full charge.
20-Amp Charger: Approximately 4–6 hours for a full charge.
Keep in mind that battery age and condition can also affect charging duration.
Request an Instant Quote
Don’t let a dead battery slow you down. Explore our range of Golf Cart Battery Chargers and find the perfect match for your cart. Experience efficient, reliable charging every time.
